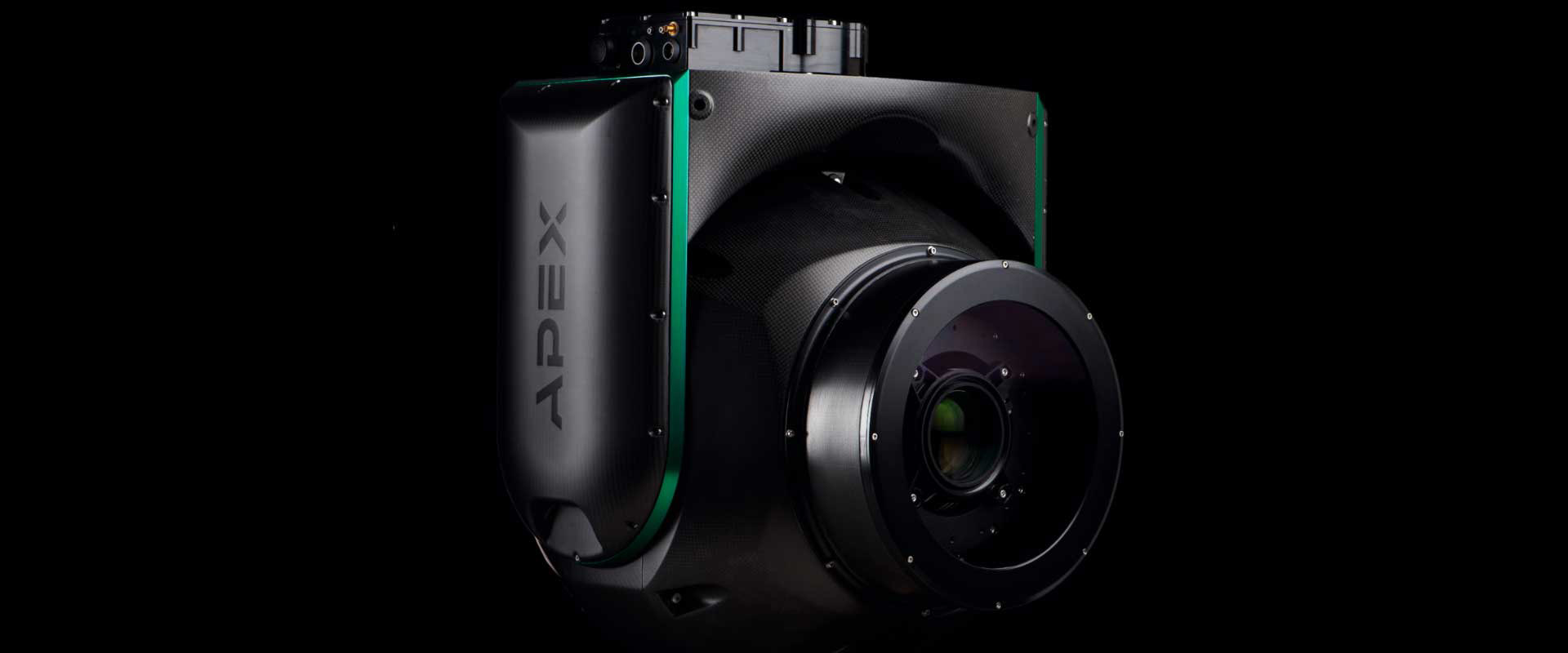

APEX AX18 camera stabilization system, with carbon-fibre housing
APEX Stabilizations

Keep the shot steady.
Wherever production
takes you.

Camera stabilization for broadcast and cinema. Explore system quotations, camera and lens compatibility, and project integration with A&S Broadcast in Hong Kong.

Asia enquiries through A&S Broadcast Limited.

Discuss your setupCompare systems

Two systems.
Different demands.

Start with the platform you shoot from.
Then build the camera and lens configuration around your production.

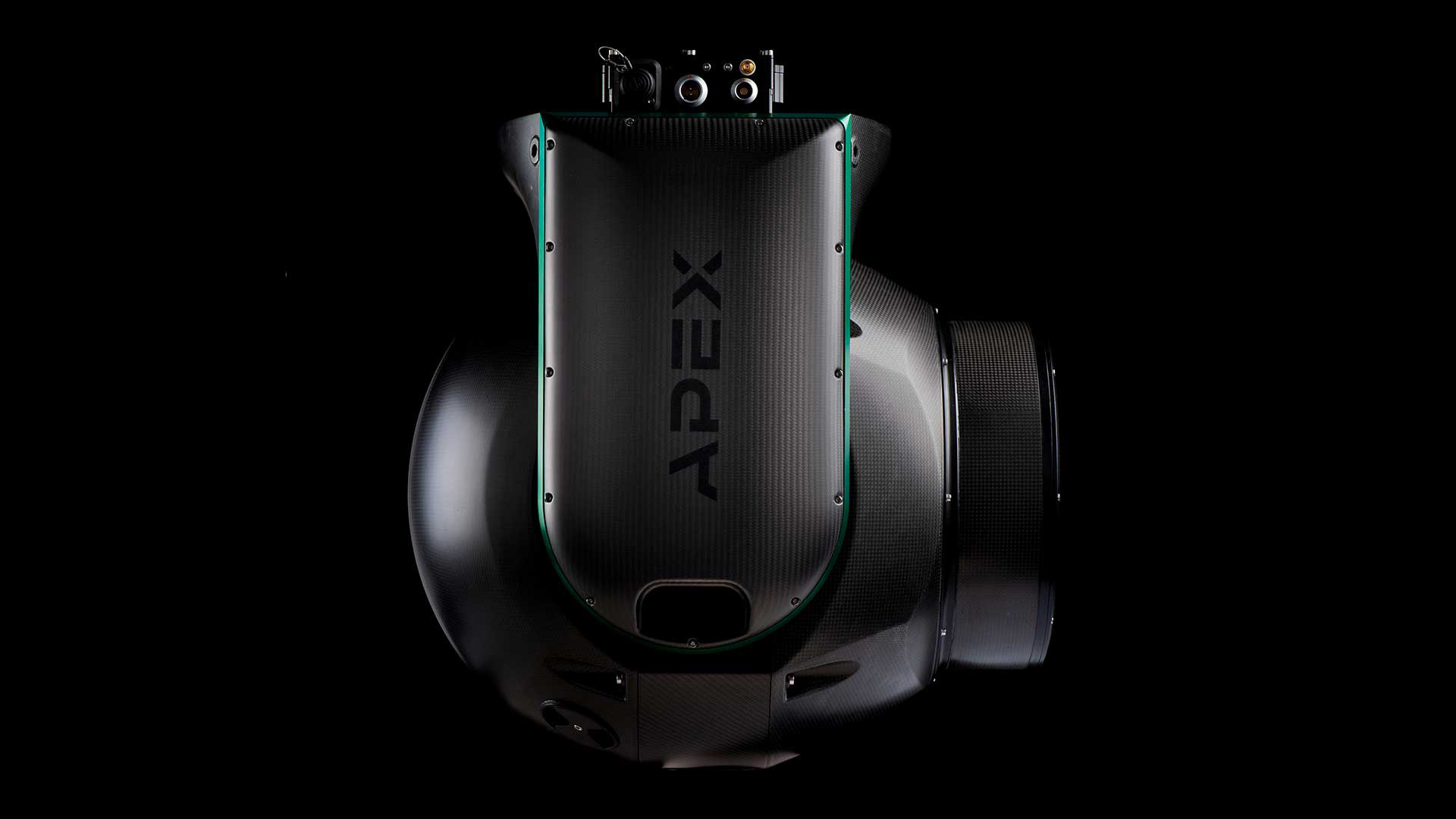

AX18 system with green trim and carbon-fibre construction

AX18

Aerial & long-lens production

For airborne production and demanding long-lens work. A five-axis platform with modular camera and lens integration.

Stabilization
5 axes
Control
Ethernet
Empty turret weight
23 kg
Enclosure rating
Discuss requirements
Continuous pan
360°
Pan / tilt speed
Up to 150°/s

System quotation

Price on enquiry

Tell us your camera, lens and mounting platform. Our team will help you plan your AX18 configuration.

Contact A&S Broadcast to discuss your configuration, availability and delivery.

Discuss an AX18 setup

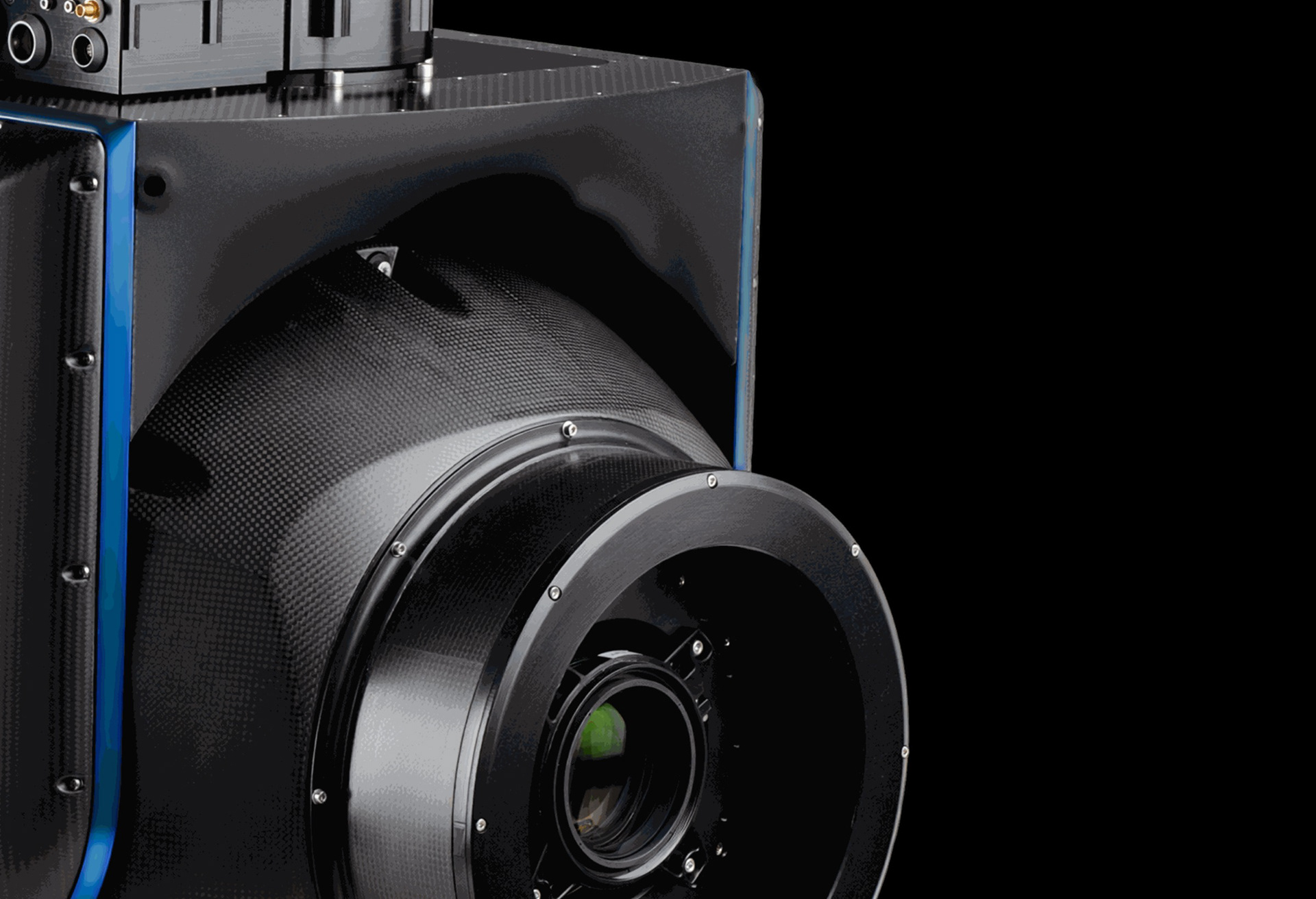

AX18 CORE system with blue trim and closed camera housing

AX18 CORE

Ground & marine production

For vehicles, cranes, cable cameras and boats. A five-axis system with an IP65 enclosure and Ethernet control.

Stabilization
5 axes
Control
Ethernet
Empty turret weight
26 kg
Enclosure rating
IP65
Continuous pan
360°
Pan / tilt speed
Up to 130°/s

Base set price

EUR 149,000

Base set, excluding tax. Includes one bracket configuration for one payload.

Contact A&S Broadcast to discuss your configuration, availability and delivery.

Discuss an AX18 CORE setup
Compare technical specifications
System specifications
SpecificationAX18AX18 CORE
ApplicationAerial & long-lensVehicles, cranes & marine
Stabilization5 axes5 axes
ControlEthernetEthernet
Enclosure ratingDiscuss requirementsIP65
Empty turret weight23 kg26 kg
Turret dimensions60 × 48 × 48 cm60 × 48 × 48 cm
Pan / tilt speed0–150°/s0–130°/s
Continuous pan360°360°
Tilt range230°230°
Roll range±100°±100°
Input voltage20–34 V20–34 V
Typical current6 A at 28 V7 A at 24 V
Peak current20 A at 28 V20 A at 24 V
Operating temperature−20 to +50°C−20 to +50°C

Speed varies with gearbox configuration. Empty turret weight excludes the payload. Camera, lens and mounting options are configured for your application. IP65 is not an immersion rating.

Where will you
take the shot?

Choose a production platform to explore what to discuss with our team.

AX18

A steady frame.
A moving platform.

Discuss airborne production and long-lens requirements with A&S. Camera, lens, mounting and control arrangements all shape the final system.

Tell us your aircraft platform, camera, lens and intended focal range.

Discuss this application

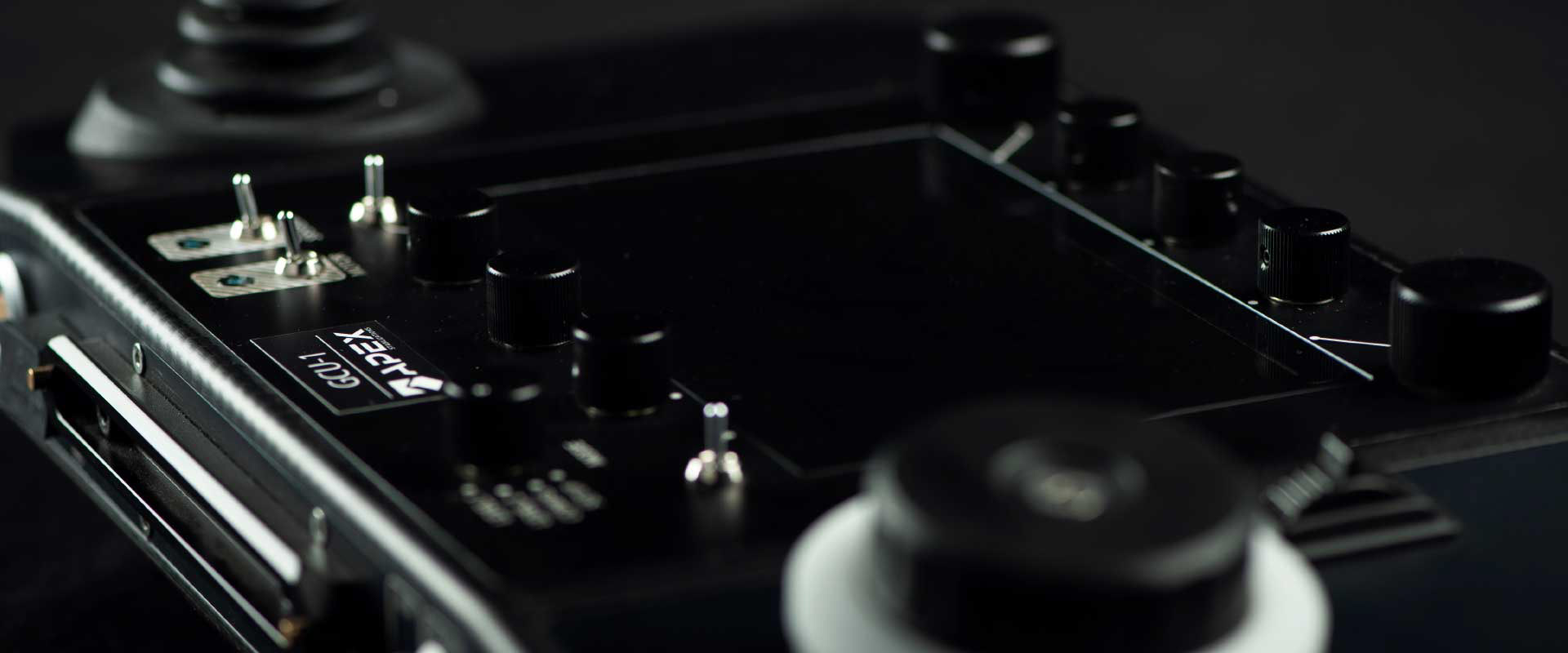

APEX GCU-1 camera and gimbal operating panelGCU-1 operating panel

The system starts
with your setup.

Bring the production details. We can discuss how the camera, lens, platform and control workflow fit together.

Camera & lens
Exact models, focal range and accessories.
Mounting platform
Aircraft, vehicle, crane, cable camera or boat.
Control & connections
Operator position, cable runs and video workflow.
Production conditions
Location, weather exposure and project timing.
Talk through your configuration

Tell us about
your production.

For APEX enquiries in Asia, start a conversation with A&S Broadcast.

You do not need a complete equipment list. Share what you know and tell us what you want to achieve.

+852 2499 1011WhatsApp · +852 9771 8378

Hong Kong · UTC+8

Company & contact details
Talk to our team

Discuss system configuration, availability and delivery with A&S Broadcast.
